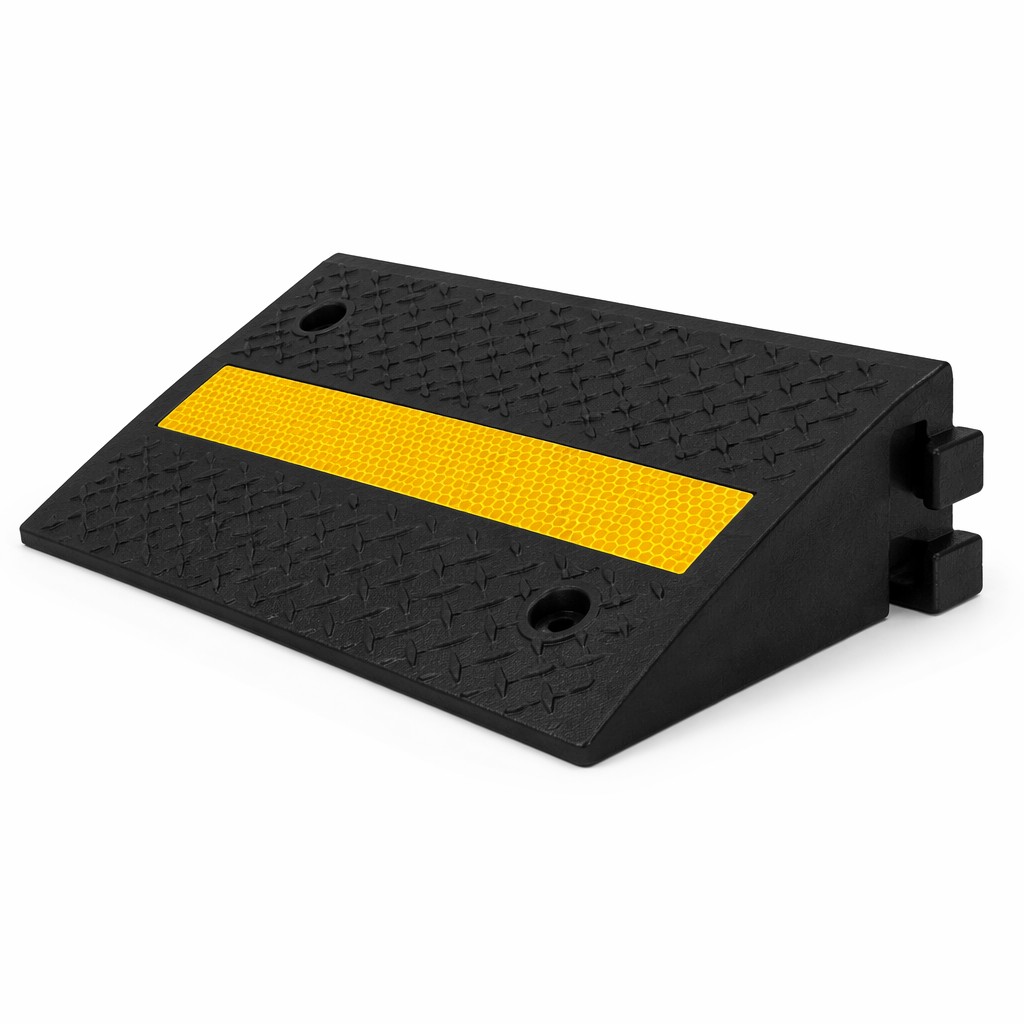

Modular Rubber Driveway Curb Ramp

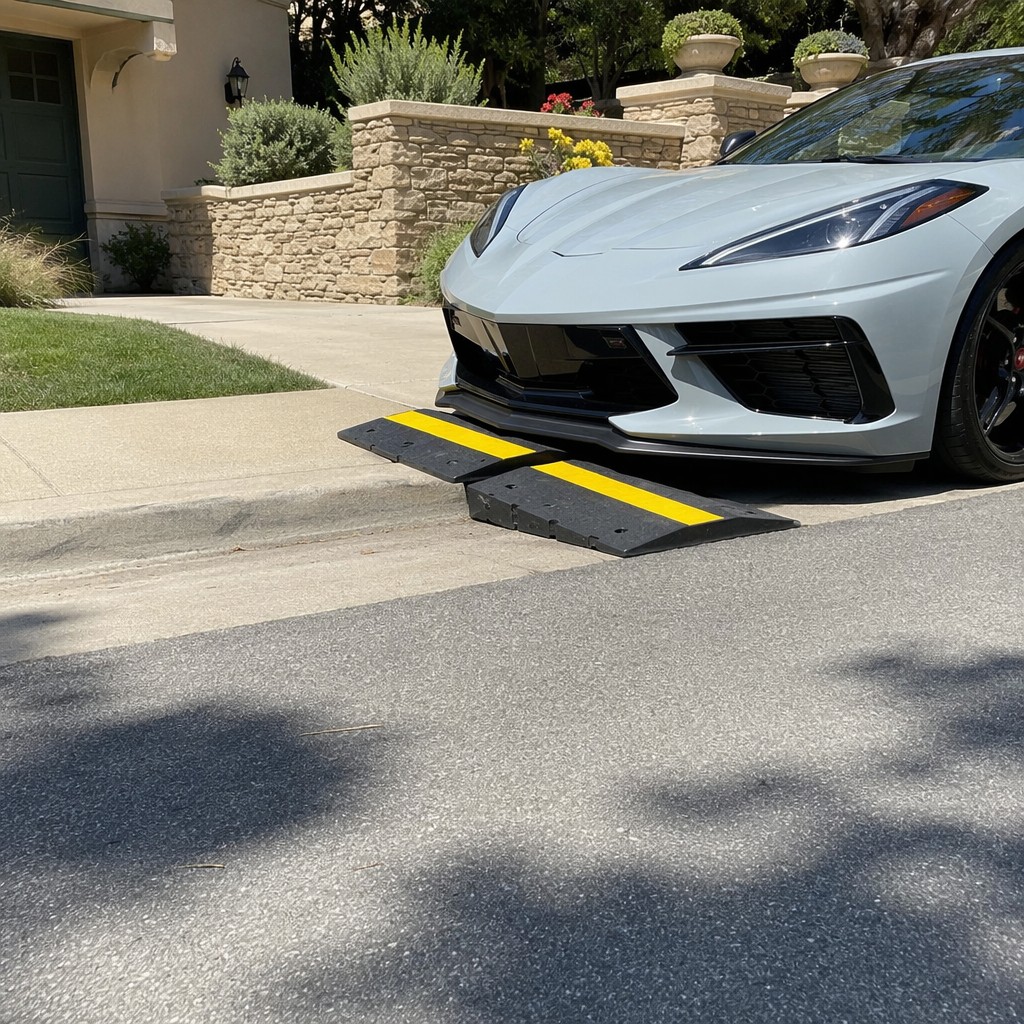

Wedge-shaped rubber ramp for smooth low-clearance car access over a raised curb. Black rubber body with yellow reflective safety stripe, 2 pre-drilled anchor holes, side-interlocking to build longer runs. The standard for residential driveways, low-clearance sports cars, and forklift bay entrances. Installing it yourself? Read our speed bump anchoring guide for asphalt vs concrete fasteners.

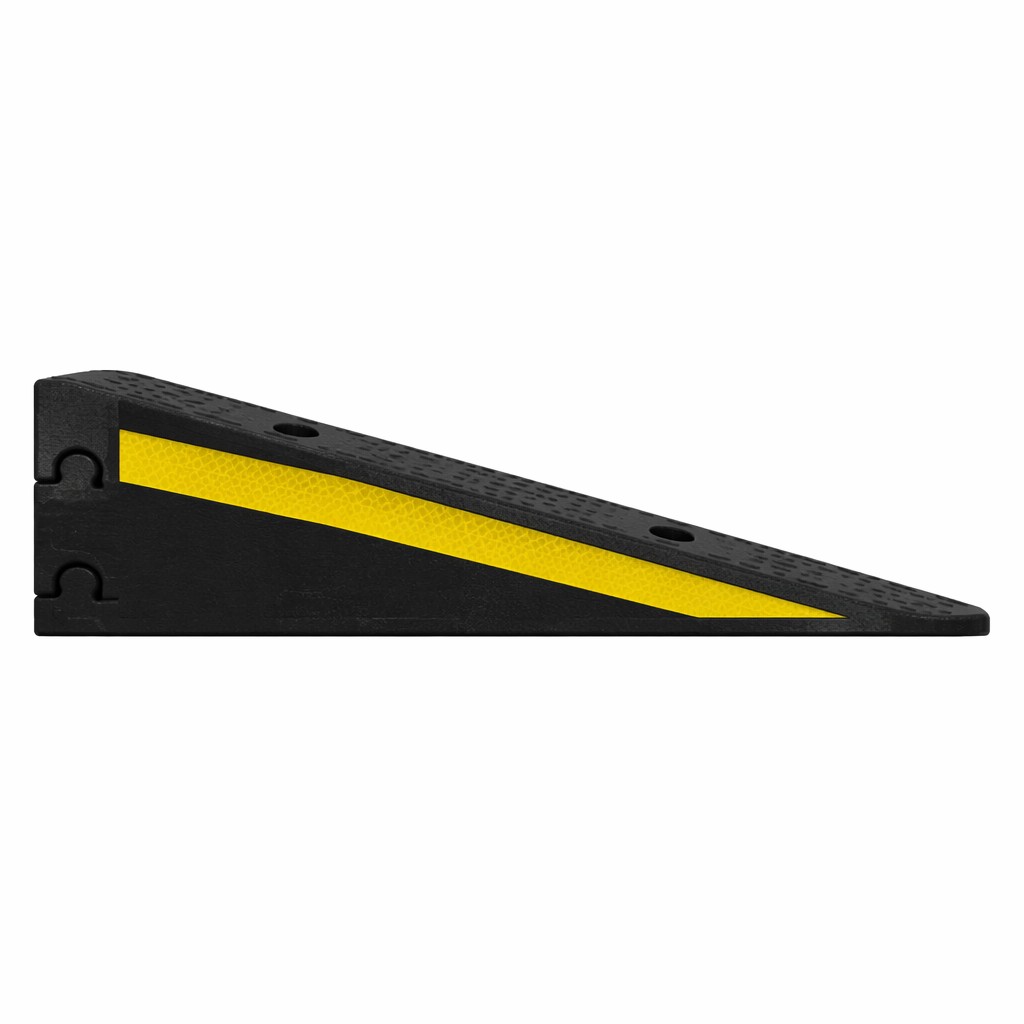

- Wedge shape — smooth transition over 15 cm curb

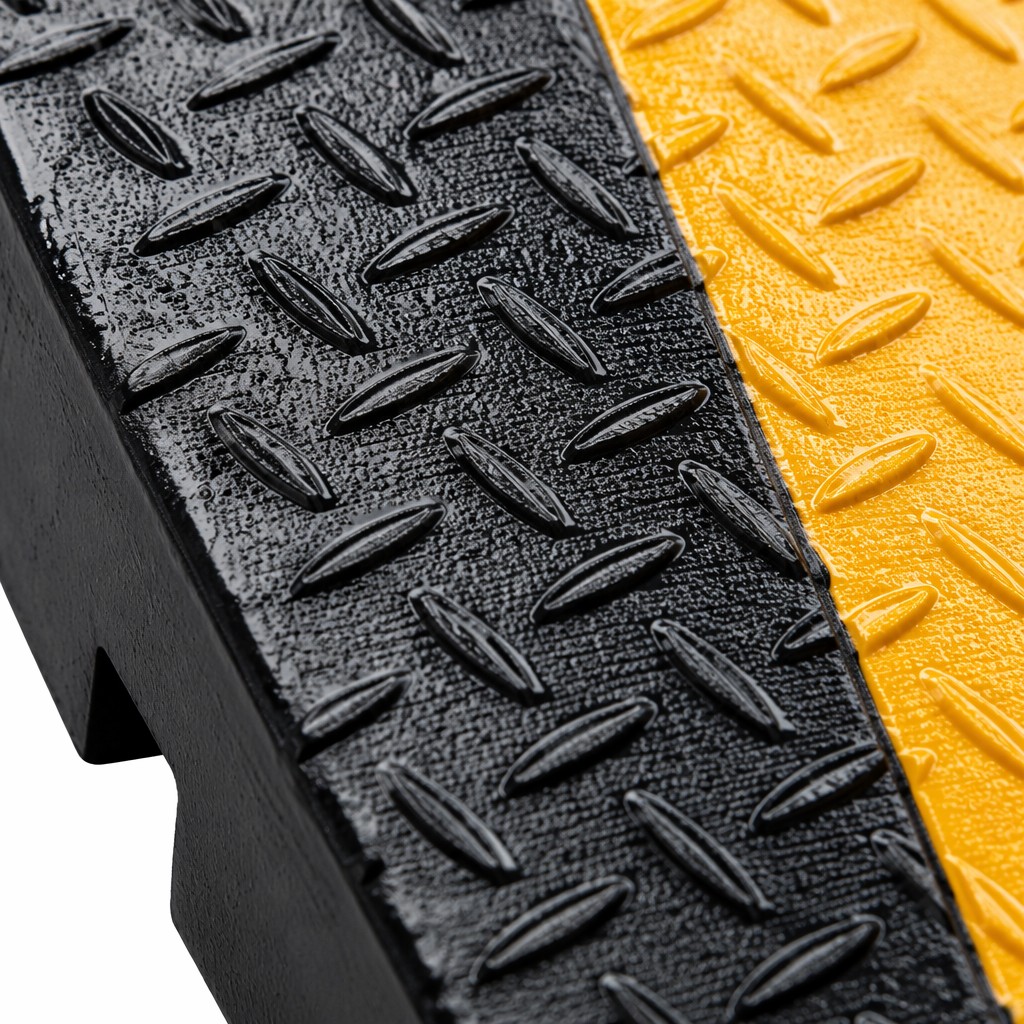

- Non-skid diamond tread on angled top surface
- Yellow reflective safety stripe near leading edge

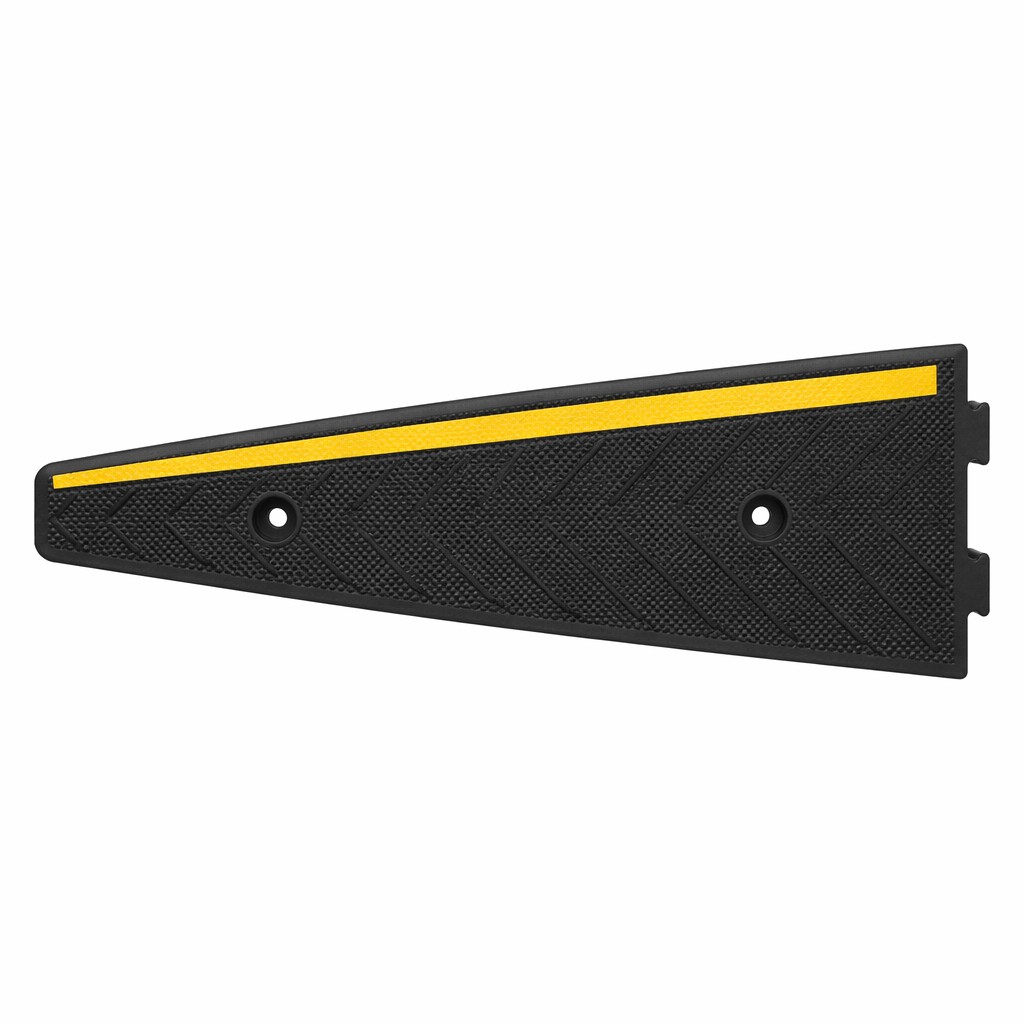

- 2 × Ø 14 mm anchor holes for permanent installation
- Side-interlocking — join multiple ramps for wider driveways
Full Technical Specification
| Model Code | CR-150 |
|---|---|
| Length | 900 mm per ramp In-house |
| Width | 250 mm In-house |
| Curb Height | 150 mm (this SKU) · also available 100 / 200 / 250 mm In-house |
| Weight | ~ 9 kg per ramp In-house |
| Material | Heavy-duty recycled SBR rubber compound |
| Anchor Holes | 2 × Ø 14 mm countersunk holes on top face |
| Reflective Stripe | 1 × yellow retro-reflective RA1 stripe on leading edge |
| Interlocking | Side dovetail joints for gap-free multi-ramp installation |
| Non-Skid Surface | Diamond-tread molded texture on top angled face |
| Load Rating | Rated up to 8-ton axle load In-house |
| Temperature Range | -40 °C to +80 °C, UV / oil / freeze-thaw resistant Standard |
| MOQ | 20 pcs Per order |
| Packing | Bulk pallet · 30 ramps per pallet Per order |
| Container Load | ~ 600 pcs / 20' GP Per order |
| Lead Time | 18 days for MOQ · 28 days for > 300 pcs Per order |
Are you a manufacturer or a trading company?
We are the manufacturer. Our plant in Tiantai County, Zhejiang covers 15,000 m² and runs its own rubber compounding, moulding and reflective-film application lines. You are welcome to arrange a factory audit or a live video walkthrough before ordering.
What is the minimum order quantity?
Most items start at 50 pieces. Mixed colours or sizes can usually be combined within one order to reach the minimum — tell us what you need and we will confirm.
How long does production take?
Standard configurations ship in about 15 days after the deposit clears. Custom colours, logo printing or new packaging typically add 5–7 days. Peak season (March–June) can extend this, so we confirm a firm date with every quotation.
Can I order a sample first?
Yes. We recommend it for any first order. Sample cost and courier freight are quoted case by case, and we credit the sample cost against your first bulk order.
What customisation do you offer?
Body colour to any Pantone reference, silk-screened or heat-transfer logos, altered dimensions on existing moulds, custom reflective-band layouts, and private-label packaging. Entirely new moulds are possible — send a drawing and we will quote tooling separately.
Which certifications do your products carry?
The factory holds CE and ISO 9001. Individual products are built to the reflective and material standards cited in the specification table above. If your project requires a specific standard, tell us at the enquiry stage so we can confirm compliance before you order.
What are your payment and shipping terms?
Usual terms are 30% deposit with the balance against the bill of lading copy; T/T and L/C are both accepted, and Alibaba Trade Assurance is available. We quote FOB by default and can arrange CIF or DDP on request. We ship to more than 50 countries.
| Legal entity | Tiantai Minjun Handicraft Co., Ltd. |
|---|---|
| Established | 2010 |
| Location | Tiantai County, Taizhou, Zhejiang Province, China |
| Plant area | 15,000 m² |
| Annual rubber throughput | 3,000 tonnes |
| Business type | Manufacturer — own moulding, compounding and finishing lines |
| Product range | 24 SKUs across 8 categories: traffic cones, delineators, dock bumpers, cable protectors, wheel stoppers, curb ramps, convex mirrors and site safety accessories |
| Certifications | CE · ISO 9001 |
| Export markets | 50+ countries — North America, Europe, Middle East, Australia, Southeast Asia |
| Minimum order | From 50 pieces |
| Standard lead time | 15 days for stock configurations |
| OEM / ODM | Supported — colour matching, logo printing, dimension changes, private-label packaging |
| Payment terms | T/T (30% deposit) · L/C · Alibaba Trade Assurance |
| Shipping terms | FOB · CIF · DDP on request |
What You Can Customize
Every element below is quotable at MOQ. Send us a spec sheet or a photo — we quote back within 2 hours.

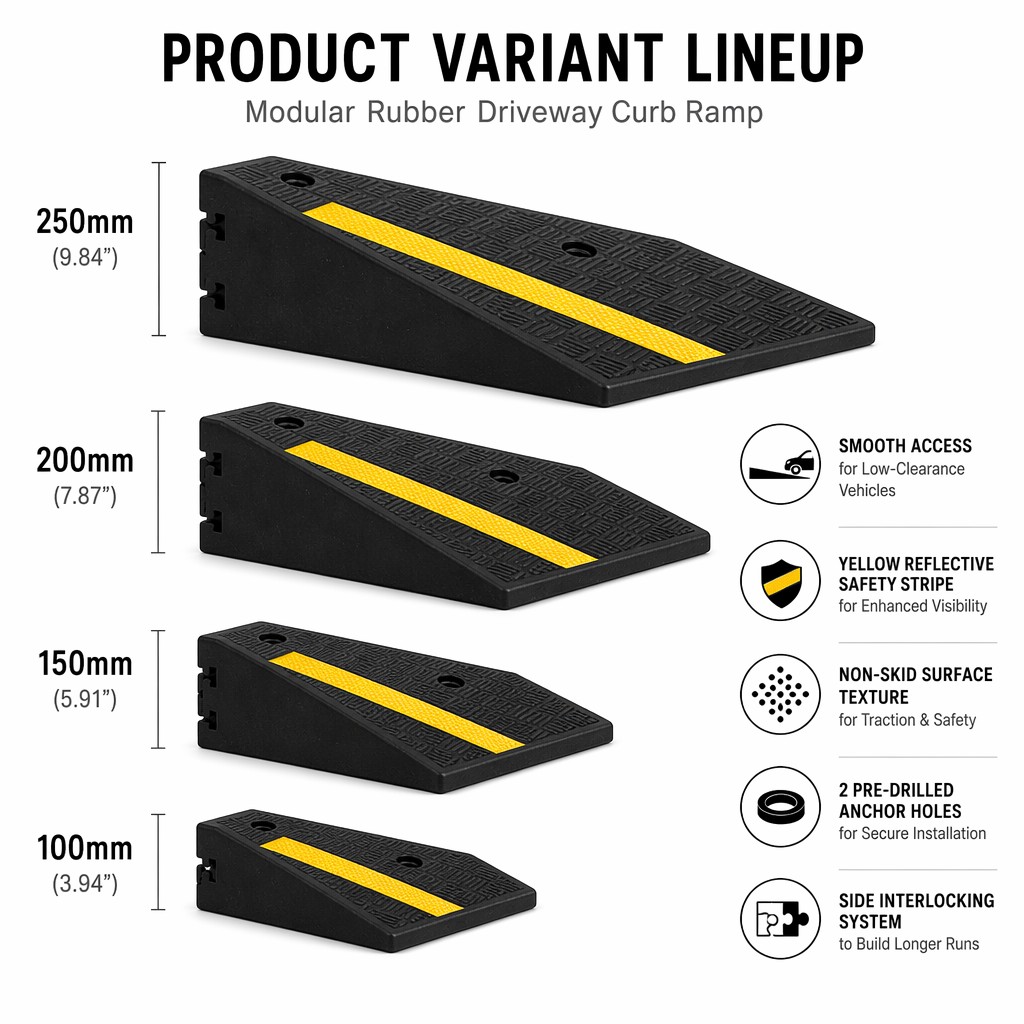

📏 Curb Height
100 / 150 / 200 / 250 mm for different curb heights.
📐 Length
900 mm standard. Custom widths 600 / 1200 / 1500 mm available.
🎨 Stripe Color
Yellow standard. White, red, blue at MOQ 100.
🕳️ Anchor Config
2 holes standard. Optional M14 anchor kits pre-fitted.
🧱 Rubber Grade
Recycled SBR standard. 100 % virgin EPDM for extreme UV.
↔️ Sidewalk Adapter
Optional flat side-adapter for connecting to a walkway.
Ready to Order This Product?
Send your quantity, target destination and any customization — we reply within 2 business hours with a quote & spec sheet.
→ Send Inquiry Now
