Steel-Faced Laminated Rubber Dock Bumper

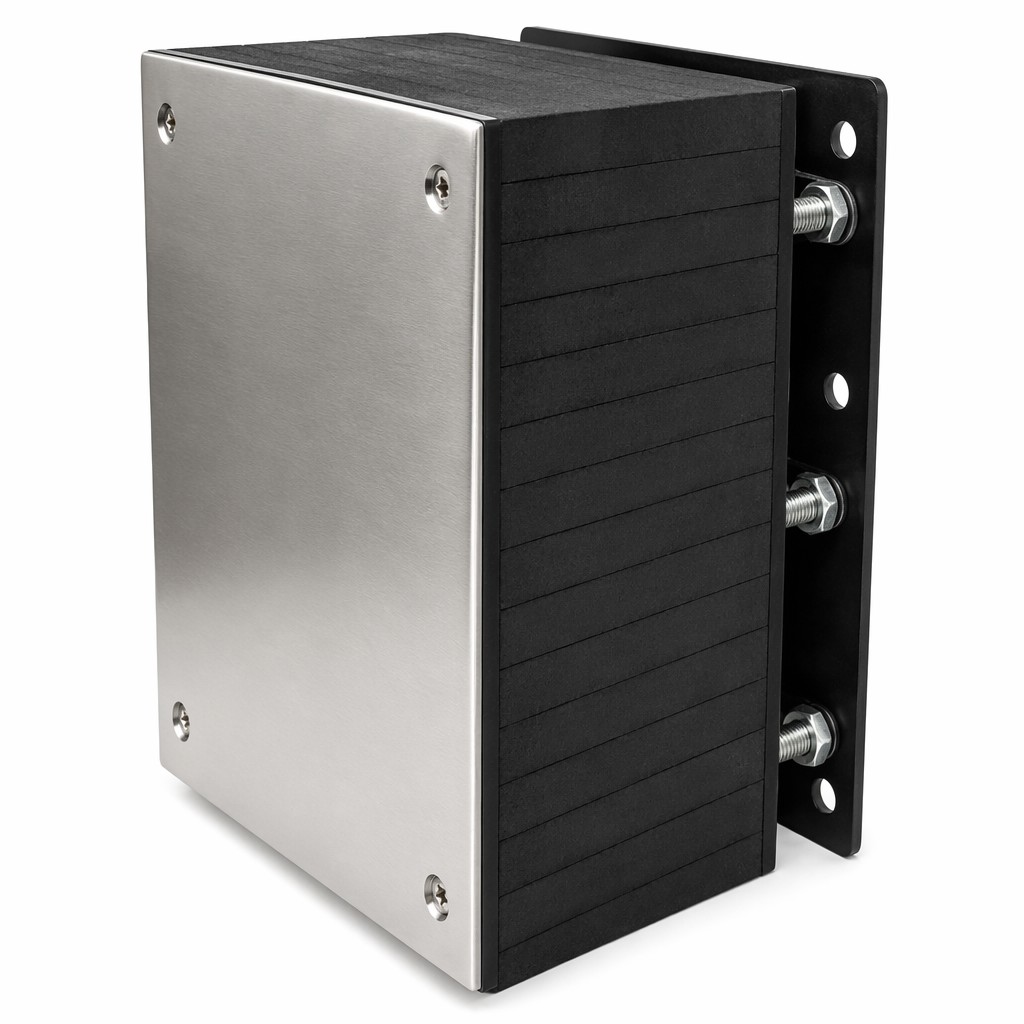

Laminated rubber core bonded to a polished steel face plate — engineered for the punishment of freight docks and cold regions where standard rubber cracks. Absorbs impact energy across the full lamination stack, then wears through the steel plate first (replaceable) rather than the rubber body.
- Laminated rubber layers (12-24 depending on size) — no cured-block cracking
- Polished 10 mm steel face plate — rated for > 200,000 truck impacts
- Cold-region certified: -40 °C operating without embrittlement
- 4 pre-drilled mounting holes with steel back-plate for wall/dock attachment
- Any custom size — no tooling fee above 20 pcs
Full Technical Specification
| Model Code | DB-SF (steel-faced) · also available: DB-STD (rubber-only) |
|---|---|

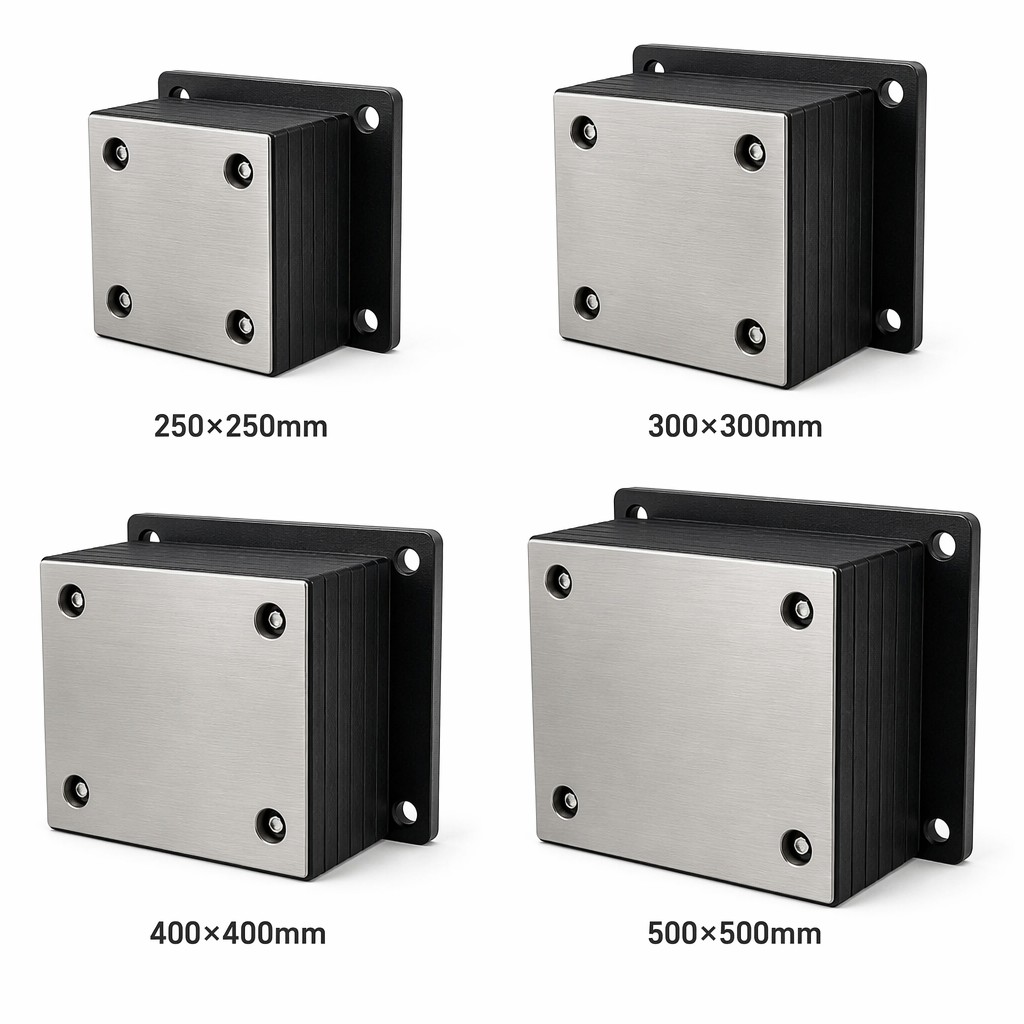

| Standard Sizes | 250 × 250 × 100 mm · 300 × 300 × 100 mm · 400 × 400 × 150 mm · 500 × 500 × 200 mm Standard |
| Weight (250 × 250 × 100) | ~ 9 kg per piece In-house |
| Rubber Core | 12-24 laminated layers (thicker unit = more layers), NR/SBR compound |
| Face Plate | 10 mm hot-rolled steel, mill-polished + zinc-rich primer |
| Back Plate | 6 mm steel with 4 × Ø 12 mm mounting holes |
| Mounting Bolts | Ships with 4 × M12 × 120 mm anchor bolts + washers (add-on kit) |
| Impact Rating | Rated for ISO 6752 dock loading, static compression up to 24,000 N |
| Temperature Range | -40 °C to +85 °C (cold-chain / arctic port rated) Standard |
| Custom Sizes | Any dimension up to 700 × 700 × 300 mm, no tooling fee above 20 pcs Per order |
| MOQ | 20 pcs (mixed sizes acceptable in one order) Per order |
| Packing | Individual wooden pallet + strap · palletized for 20' or 40' container Per order |
| Container Load | ~ 300 pcs (250 mm) / 20' GP · ~ 700 pcs / 40' HQ Per order |
| Lead Time | 25 days for MOQ · 35 days for > 500 pcs Per order |
Are you a manufacturer or a trading company?
We are the manufacturer. Our plant in Tiantai County, Zhejiang covers 15,000 m² and runs its own rubber compounding, moulding and reflective-film application lines. You are welcome to arrange a factory audit or a live video walkthrough before ordering.
What is the minimum order quantity?
Most items start at 50 pieces. Mixed colours or sizes can usually be combined within one order to reach the minimum — tell us what you need and we will confirm.
How long does production take?
Standard configurations ship in about 15 days after the deposit clears. Custom colours, logo printing or new packaging typically add 5–7 days. Peak season (March–June) can extend this, so we confirm a firm date with every quotation.
Can I order a sample first?
Yes. We recommend it for any first order. Sample cost and courier freight are quoted case by case, and we credit the sample cost against your first bulk order.
What customisation do you offer?
Body colour to any Pantone reference, silk-screened or heat-transfer logos, altered dimensions on existing moulds, custom reflective-band layouts, and private-label packaging. Entirely new moulds are possible — send a drawing and we will quote tooling separately.
Which certifications do your products carry?
The factory holds CE and ISO 9001. Individual products are built to the reflective and material standards cited in the specification table above. If your project requires a specific standard, tell us at the enquiry stage so we can confirm compliance before you order.
What are your payment and shipping terms?
Usual terms are 30% deposit with the balance against the bill of lading copy; T/T and L/C are both accepted, and Alibaba Trade Assurance is available. We quote FOB by default and can arrange CIF or DDP on request. We ship to more than 50 countries.
| Legal entity | Tiantai Minjun Handicraft Co., Ltd. |
|---|---|
| Established | 2010 |
| Location | Tiantai County, Taizhou, Zhejiang Province, China |
| Plant area | 15,000 m² |
| Annual rubber throughput | 3,000 tonnes |
| Business type | Manufacturer — own moulding, compounding and finishing lines |
| Product range | 24 SKUs across 8 categories: traffic cones, delineators, dock bumpers, cable protectors, wheel stoppers, curb ramps, convex mirrors and site safety accessories |
| Certifications | CE · ISO 9001 |
| Export markets | 50+ countries — North America, Europe, Middle East, Australia, Southeast Asia |
| Minimum order | From 50 pieces |
| Standard lead time | 15 days for stock configurations |
| OEM / ODM | Supported — colour matching, logo printing, dimension changes, private-label packaging |
| Payment terms | T/T (30% deposit) · L/C · Alibaba Trade Assurance |
| Shipping terms | FOB · CIF · DDP on request |
What You Can Customize
Every dimension and every layer is quotable. Send us the wall opening / dock configuration and we design to fit.
📏 Any Dimension
250 - 700 mm on face, 100 - 300 mm depth. Non-rectangular shapes (D-profile, W-profile) available.
🧱 Rubber Layer Count
12 to 24 laminated layers depending on impact class. Higher layers = more absorption, lower rebound.
🛡️ Steel Face Grade
Standard 10 mm mild steel. Upgrade to 316 stainless for marine/coastal, or 20 mm plate for extreme abrasion.
🔩 Mounting Pattern
4-hole standard. Custom hole pattern (up to 8 holes) to match your existing dock plate.
🌡️ Cold-Chain Rubber
Standard NR/SBR rated to -40 °C. Silicone / neoprene for -55 °C arctic operations at additional cost.
🎨 Face Plate Finish
Standard polished + primer. Options: hot-dip galvanized, powder-coat safety yellow, or painted brand color.
